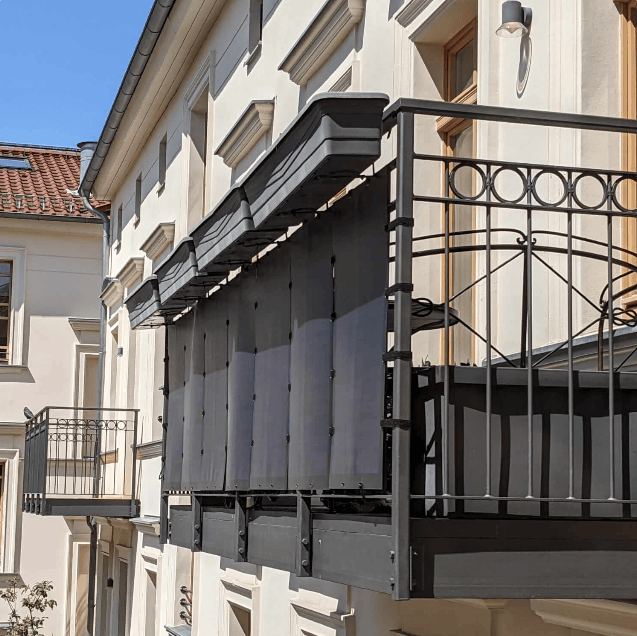

Balcony solar system

Generate electricity from sunlight

Turn your balcony into a green energy source!

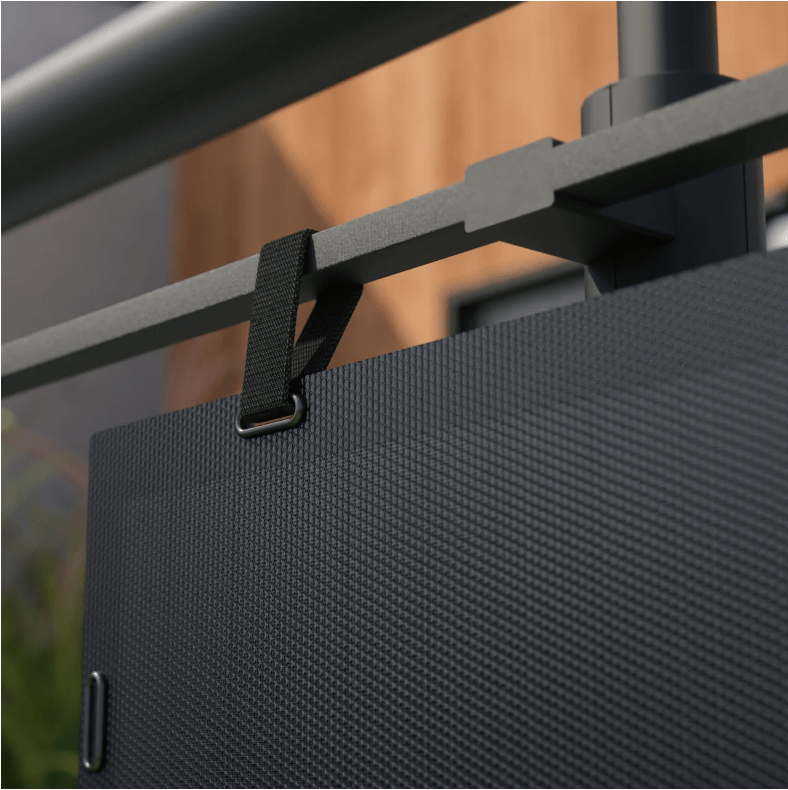

Flexible solar panels are lightweight, thin, flexible, easy to install, contour to different surfaces, and super weather resistant. Its relaxed and friendly setup allows the use of unobstructed energy from balconies.

Versatility, Durability and Easy Installation

Easy Installation

Parts have been high pre-assembly on factory to save your installation time.

Safety and Reliability

Check and test the structure strictly to against the extreme weather condition.

Flexibility and Adjustable

Smart design reduce the difficulty of the installation on the most condition.

12-Year Warranty

PURE Solar provides a 12-years warranty for the material and structure.

Most energy comes from the sun and it’s time to take advantage

Save on Energy Costs

Why Choose Balcony System

Smooth Set up

The system is a plug-and-play system composed of solar panel, micro inverter and angle-adjustable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.

Multiple Scenarios

Designed to be installed on balconies, gardens, flat roofs, walls and other limited outdoor spaces, the solar power system is a cost-effective and environmentally friendly way to generate electricity and reduce energy costs.

Cost Saving

The balcony power system brings freedom to the home by exclusively harnessing the power of solar energy. Free yourself from monthly electric bills and make your lifestyle less dependent on the grid. Its relaxed and friendly setup allows the use of unobstructed energy from balconies.

Adjustable Angle

The  balcony solar power system allows for manual adjustment of the PV module angle to maximize energy output. Users can set a recommended angle or make manual adjustments based on seasonal time changes.

SpecificationUnitPS-205-F8MPPS-210-F8MP
Dimension(LXWXH)mm1380*790*31380*790*3
Max-Power(Pm)W205210
Max-Power Voltage(Vm)V15.916.2
Max-Power Current(Im)A1313.06
Open-Circuit Voltage(Voc)V19.419.4
Short-Circuit Current(Isc)A13.7213.72
Module Efficiency%18.819.26
Weightkg3.3
Operating Temperature Range﹣40~85
Max-System VoltageV600
IP RatingIP67
Balcony Solar panel - 200W
What is a balcony power plant?

A balcony power plant is a small solar system with an output of up to 600W. Unlike conventional solar systems, no complex installation by an electrician is required.

At its core, a balcony power plant consists of four essential components: the solar modules, the inverter, the holder and the connection cables. The solar modules convert the sunlight that hits the modules into direct current. So that this generated electricity can be used, the inverter converts the direct current into alternating current, which is then fed into the socket using the connecting cable. The holder is used to mount the solar modules and the inverter at the desired location.

Our balcony power plants can easily be installed yourself.

Unlike regular solar systems, you don’t need an electrician to install your balcony power plant. However, it is important that you report your balcony power plant to the market master data register and your energy supplier. Sounds more complicated than it is. Here we explain to you how it works. You should also ask your landlord for permission. Before setting up your balcony power plant, it is important to read the assembly and operating instructions to ensure the safe installation and operation of your balcony power plant.

Without question, a balcony power plant produces more electricity in summer, but our monocrystalline solar modules with high efficiency also produce electricity reliably in winter.

The delivery time depends on the product ordered, but since we have all products permanently in stock, the delivery time should only be a few days. You can find more detailed delivery information for the respective products.
