pure solar
lightweight flexible solar panel
Lightweight, efficient and versatile. Flex solar panels can be easily mounted on curved surfaces to provide reliable and clean energy. It uses advanced solar cell technology to convert sunlight into electricity, ideal for device charging, lighting and off-grid systems. Flexible solar panels are one of the best solutions for rooftops with load-bearing and other structural limitations, like rubber roofs, commercial and industrial steel tile roofs, flat roofs, curved roofs, wooden roofs, glass roofs, etc.Embrace renewable energy on the go!
lightweight flexible solar panel
Much thinner
As thin as 3 mm
Much lighter
Weighing 3.5 kg/m2
Only 30% of traditional modules
More flexible
Can be curved as much as 280 degrees
More Power
Customizable
20w-560w
Independently Developed Waterproof Fluoric Front Film
- Enhanced waterproofing capabilities
- Improved UV-blocking effectiveness
- Reinforced structural integrity
Individually Developed Reinforced Fiberglass Materials
- Increased light transmittance
- Enhanced durability of composite materials

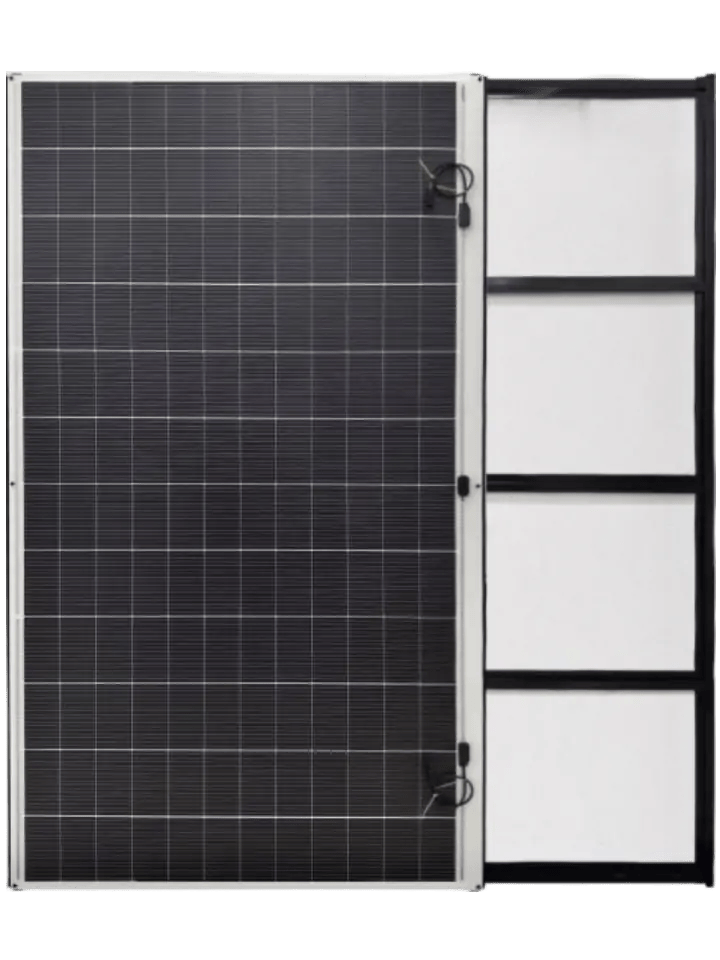

Flexible Modules 560w
| Specification | Unit | PURES-550-F8MA | PURES-560-F8MA | PURES-570-F8MA |
| Dimension(LXWXH) | mm | L:2260*W:1209*H:2.7 mm / L:2260*W:1209*H:18 mm(J-Box included) | ||
| Max-Power(Pm) | W | 550 | 560 | 570 |
| Max-Power Voltage(Vm) | V | 42.63 | 43.18 | 43.68 |
| Max-Power Current(Im) | A | 12.91 | 12.97 | 13.05 |
| Open-Circuit Voltage(Voc) | V | 52.32 | 52.58 | 52.77 |
| Short-Circuit Current(Isc) | A | 13.65 | 13.79 | 13.78 |
| Module Efficiency | % | 22.96 | 23.50 | 23.82 |
| Weight | kg | 7.5 | 7.5 | 7.5 |
| Operating Temperature | ℃ | ﹣40~85 | ||
| Max-System Voltage | V | 1000/1500 | ||
| IP Rating | – | IP68 | ||
Versatility, Durability and Easy Installation
Low load-bearing roofs
Conventional glass modules require a minimum load capacity of 15 kg per square meter for installation. However, many buildings do not meet this requirement, necessitating costly and time-consuming structural reinforcement, which disrupts normal operations.
Flexible solar panels are an ideal solution to this problem. Their lightweight and adaptable design allows them to be installed directly on roofs with insufficient load capacity, eliminating the need for additional reinforcement.
Waterproof membrane roofs
Roof membranes, such as bitumen, TPO and PVC, are becoming increasingly popular waterproof covers for commercial roofs. Due to penetration issues, waterproofing membranes cannot accommodate conventional glass modules.
By bonding flexible solar panels to these roofs, new solar generation capacity can be created.
Curved roofs
Conventional and rigid glass modules cannot be installed on roofs with curved angles. On the other hand, flexible solar modules can be bonded directly to these roof types.
Moreover, the flexibility of flexible solar modules compliment the curvature of these buildings, providing an aesthetic solar solution.
Facades
Flexible solar panels can be seamlessly integrated into a building’s façade system, expanding solar energy generation beyond traditional rooftop installations. By incorporating PV technology into the building envelope, these panels not only generate clean energy but also provide additional advantages, such as lowering indoor temperatures by reducing heat absorption through building materials during the summer.
