Glass Solar Tile
Solar tiles are roof-integrated BIPV modules identical to conventional roof tiles, the perfect way to invest in residential solar system.
Pure Solar is the manufacturer of solar tiles and flexible solar panels, offering standard solar products and custom production as well.
Key Features
- Wind protection level:Level 15(GB36584-2018)
- Resistance to 35mm hail impact
- Anti glare glass, more in line with Philosophy of architecture
- The strength is three times that of ordinary roofs and cement tiles
- 25 year power generation warranty and roof waterproofing warranty
- Fire active shutdown function, making the house safer
| Module Type | PURES-110M10 |

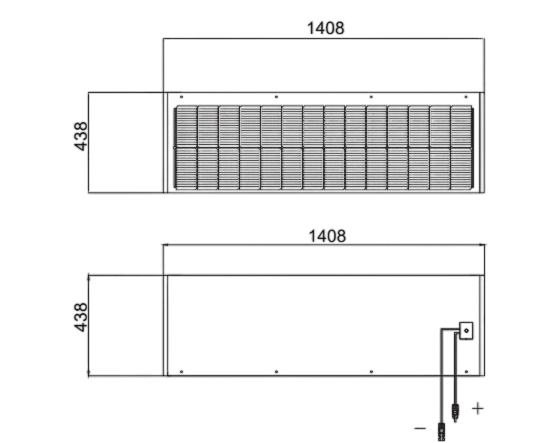

| External Dimensions | 1408x438x6.2mm |
| Weight | 8.5kg |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Fire Protection Grade | A |
| Windproof Grade | 15 |
| Anti Hail Level | 35mm |
| Test Conditions | STC |
| Maximum Power- Pmax(W) | 110 |
| Open Circuit Voltage – Voc(V) | 20.02 |
| Short- Circuit Current -lsc(A) | 6.58 |
| Voltage at Pmax -Vmp(V) | 17.3 |
| Current at Pmax -lmp(A) | 6.36 |
| Module Efficiency -nm(%) | 15.4 |
| Power Tolerance(W) | (0，+4.99W) |
| Maximum System Voltage(V) | 1500Vdc (IEC/UL) |
| Maximum Series Fuse Rating(A) | 10A |
Our Advantages
Aesthetics
Ultra-low glare, more texture.
Safety
3 times as strong as conventional roof.
Easy assembly
Intelligent design like Lego and standardized installation.
Custom production
Support customized dimension and color.
Solar roof tiles (or photovoltaic roof tiles) are a way to seamlessly integrate solar technology into your home without compromising the natural design of your home. It works on the same principle as traditional solar panels. Therefore, solar roof tiles combine the functionality and aesthetics of BIPV, allowing for uniformity of design!
Install Solar Roof Tiles and power your home with a fully integrated solar and storage system. With a seamless design, each tile looks great up-close or from the street, complementing your home’s natural aesthetic styling.
Solar roof tiles (or photovoltaic roof tiles) are a way to seamlessly integrate solar technology into your home without compromising the natural design of your home. It works on the same principle as traditional solar panels. Therefore, solar roof tiles combine the functionality and aesthetics of BIPV, allowing for uniformity of design!
Install Solar Roof Tiles and power your home with a fully integrated solar and storage system. With a seamless design, each tile looks great up-close or from the street, complementing your home’s natural aesthetic styling.
Professional construction with ultra long warranty
Materials
2
Mono solar cell,Tempered Glass
Hardness
3
times as strong as cement tile. resistant to hail(35mm) impact.
Warranty
25
years（pro+/plus+）
1.What is the lead time for solar tiles?
The lead time is related to the product models and stock, ranging from 20 days to 40 days.
2.What is the order process?
Contact us in the first instance with an enquiry and we’ll help with design and costing. Click here to contact us or email info@getpuresolar.com. If you have roof or structural drawings then it would be great to send to us. We will work with you to fully understand your requirements, and advise on the best tile or panel type for your project.
3.Where can I purchase them?
Please feel free to leave your contacts on our website and our representative will contact you for more details.
4.Do you have any distributors in the world?
This is a new product for our company and we are seeking the suitable partners to distribute this product for the oversea market.
5.Can you provide custom products?
Yes, we not only provide standard products but also support custom production. Please leave your requirements on our website and our representative will contact you for more details.
